제품 상세정보
원래 장소: 중국
브랜드 이름: Kasugai
인증: ISO PED AD2000
모델 번호: ASTM A789 ASME B36.10M 이중 스테인리스강 용접 파이프
문서: 제품 설명서 PDF
지불과 운송 용어
최소 주문 수량: 교섭할 수 있습니다
가격: 협상 가능
포장 세부 사항: 항해에 적합한 팩왕
배달 시간: 30 - 60 근무일
지불 조건: Ｌ / Ｃ, Ｔ / Ｔ
공급 능력: 달 당 200 톤
상품 이름: |
ASTM A789 ASME B36.10M 이중 스테인리스강 용접 파이프 |
크기 범위: |
1/8" ~ 48" |
표준: |
ASTM A789 |
벽 두께: |
ASME B36.10M에 따라 |
길이: |
6.096m(20′), 12.19m(40′), 6m 및 12m, 맞춤형 |
단부 프로세스: |
평범한 단부, 경사진 단부, 나사산이 있는 끝 |
상품 이름: |
ASTM A789 ASME B36.10M 이중 스테인리스강 용접 파이프 |
크기 범위: |
1/8" ~ 48" |
표준: |
ASTM A789 |
벽 두께: |
ASME B36.10M에 따라 |
길이: |
6.096m(20′), 12.19m(40′), 6m 및 12m, 맞춤형 |
단부 프로세스: |
평범한 단부, 경사진 단부, 나사산이 있는 끝 |

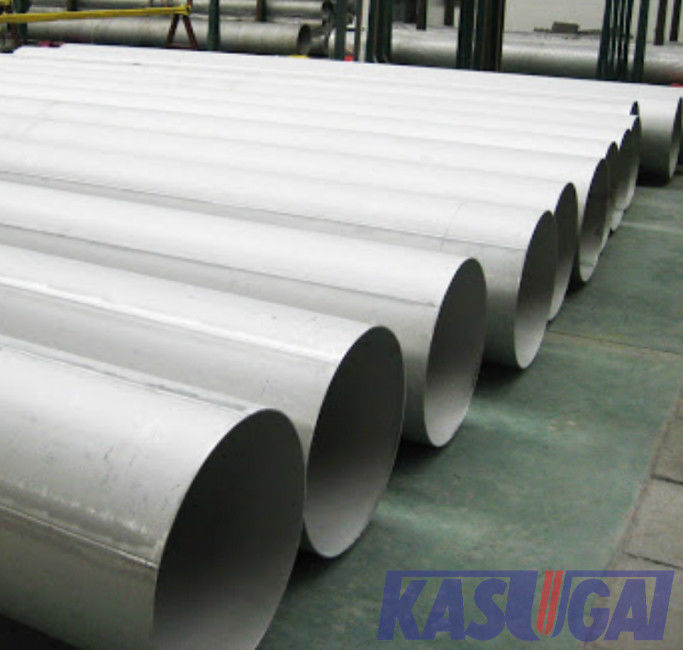

ASTM A789 ASME B36.10M 듀플렉스 스테인리스강 용접관
제품 정보
| 상품 이름 | ASTM A789 ASME B36.10M 듀플렉스 스테인리스강 용접관 |
| 크기 범위 | 1/8 내지 48 |
| 표준 | ASTM A789 |
| 벽 두께 | ASME B36.10M에 따라 |
| 길이 | 6.096 Ｍ (20′), 12.19 Ｍ (40′), 6 Ｍ와 12 Ｍ가 특화했습니다 |
| 단부 프로세스 | 평범한 단부, 경사진 단부, 나사산이 있는 끝 |
| 검사 & 테스트 | 가시성 시험, 차원 검사, PMI 화학분석, 인장시험, 편평 시험, 휨시험, 회리 전류 검사, 식각 시험, (용접관을 위한) 방사선 사진 검사, 결정간 부식 시험 (촉탁). |
표준과 재료 : ASTM A789
ASTM A789 화학조성 (%)
| UNS 수 두 부분으로 된 등급 |
Ｃ | Mn | Ｐ | Ｓ | Si | Cr | Ni | Mo | 엔 | Cu | 다릅니다 |
| S31200 | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 24.0-26.0 | 5.5-6.5 | 1.20-2.00 | 0.14-0.20 | ... | ... |
| S31260 | 0.03 | 1.00 | 0.030 | 0.030 | 0.75 | 24.0-26.0 | 5.5-7.5 | 2.5-3.5 | 0.10-0.20 | 0.20-0.80 | W0.10-0.20 |
| S31803 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 | ... | |
| S32001 | 0.030 | 4.0-6.0 | 0.040 | 0.030 | 1.00 | 22.0-23.0 | 1.00-3.00 | 0.60 | 0.05-0.17 | 1.00 | |
| S32205 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 19.5-21.5 | 4.5-6.5 | 3.0-3.5 | 0.14-0.20 | ... | |
| S32304 | 0.030 | 2.50 | 0.040 | 0.030 | 1.00 | 21.5-24.5 | 3.0-5.5 | 0.05-0.60 | 0.05-0.20 | 0.05-0.60 | |
| S32520 | 0.030 | 1.50 | 0.035 | 0.020 | 0.80 | 24.0-26.0 | 5.5-8.0 | 3.0-4.0 | 0.20-0.35 | 0.50-2.00 | |
| S32550 | 0.04 | 1.50 | 0.040 | 0.030 | 1.00 | 24.0-27.0 | 4.5-6.5 | 2.9-3.9 | 0.10-0.25 | 1.5-2.5 | |
| S32750 | 0.030 | 1.20 | 0.035 | 0.020 | 0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 | 0.50 | |
| S32760 | 0.030 | 1.00 | 0.030 | 0.010 | 1.00 | 24.0-26.0 | 6.0-8.0 | 3.0-4.0 | 0.20-0.30 | 0.50-1.00 | Ｗ 0.50-1.0 |
| S32900 | 0.06 | 1.00 | 0.040 | 0.030 | 0.75 | 23.0-28.0 | 2.5-5.0 | 1.0-2.0 | ... | ... | |
| S32950 | 0.03 | 2.00 | 0.035 |
ASME / ANSI B36.10M의 차원은 용접되었고 이음새가 없는 연강이 내보냅니다
|
NPS (인치) |
Dia 밖에. (밀리미터) |
Sch5s | Sch10s | Sch10 | Sch20 | Sch30 | Sch40s | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch100 | Sch120 | Sch140 | Sch160 | XXS |
| 1/8 | 10.3 | --- | 1.24 | --- | --- | --- | 1.73 | 1.73 | 1.73 | --- | 2.41 | 2.41 | 2.41 | --- | --- | --- | --- | --- |
| 1/4 | 13.7 | --- | 1.65 | --- | --- | --- | 2.24 | 2.24 | 2.24 | --- | 3.02 | 3.02 | 3.02 | --- | --- | --- | --- | --- |
| 3/8 | 17.1 | --- | 1.65 | --- | --- | --- | 2.31 | 2.31 | 2.31 | --- | 3.2 | 3.2 | 3.2 | --- | --- | --- | --- | --- |
| 1/2 | 21.3 | 1.65 | 2.11 | --- | --- | --- | 2.77 | 2.77 | 2.77 | --- | 3.73 | 3.73 | 3.73 | --- | --- | --- | 4.78 | 7.47 |
| 3/4 | 26.7 | 1.65 | 2.11 | --- | --- | --- | 2.87 | 2.87 | 2.87 | --- | 3.91 | 3.91 | 3.91 | --- | --- | --- | 5.56 | 7.82 |
| 1 | 33.4 | 1.65 | 2.77 | --- | --- | --- | 3.38 | 3.38 | 3.38 | --- | 4.55 | 4.55 | 4.55 | --- | --- | --- | 6.35 | 9.09 |
| 114 | 42.2 | 1.65 | 2.77 | --- | --- | --- | 3.56 | 3.56 | 3.56 | --- | 4.85 | 4.85 | 4.85 | --- | --- | --- | 6.35 | 9.7 |
| 112 | 48.3 | 1.65 | 2.77 | --- | --- | --- | 3.68 | 3.68 | 3.68 | --- | 5.08 | 5.08 | 5.08 | --- | --- | --- | 7.14 | 10.15 |
| 2 | 60.3 | 1.65 | 2.77 | --- | --- | --- | 3.91 | 3.91 | 3.91 | --- | 5.54 | 5.54 | 5.54 | --- | --- | --- | 8.74 | 11.07 |
| 212 | 73 | 2.11 | 3.05 | --- | --- | --- | 5.16 | 5.16 | 5.16 | --- | 7.01 | 7.01 | 7.01 | --- | --- | --- | 9.53 | 14.02 |
| 3 | 88.9 | 2.11 | 3.05 | --- | --- | --- | 5.49 | 5.49 | 5.49 | --- | 7.62 | 7.62 | 7.62 | --- | --- | --- | 11.13 | 15.24 |
| 312 | 101.6 | 2.11 | 3.05 | --- | --- | --- | 5.74 | 5.74 | 5.74 | --- | 8.08 | 8.08 | 8.08 | --- | --- | --- | --- | --- |
| 4 | 114.3 | 2.11 | 3.05 | --- | --- | --- | 6.02 | 6.02 | 6.02 | --- | 8.56 | 8.56 | 8.56 | --- | 11.13 | --- | 13.49 | 17.12 |
| 5 | 141.3 | 2.77 | 3.4 | --- | --- | --- | 6.55 | 6.55 | 6.55 | --- | 9.53 | 9.53 | 9.53 | --- | 12.7 | --- | 15.88 | 19.05 |
| 6 | 168.3 | 2.77 | 3.4 | --- | --- | --- | 7.11 | 7.11 | 7.11 | --- | 10.97 | 10.97 | 10.97 | --- | 14.27 | --- | 18.26 | 21.95 |
| 8 | 219.1 | 2.77 | 3.76 | --- | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 10 | 273.1 | 3.4 | 4.19 | --- | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 25.4 | 28.58 | 25.4 | 25.4 |
| 12 | 323.9 | 3.96 | 4.57 | --- | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | --- | 9.53 | 11.13 | 15.09 | --- | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | --- | 9.53 | 12.7 | 16.66 | --- | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | --- | 9.53 | 14.27 | 19.05 | --- | 12.7 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 20 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | --- | 9.53 | 15.09 | 20.62 | --- | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 22 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | --- | 9.53 | --- | 22.23 | --- | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 26 | 660.4 | --- | --- | 7.92 | 12.7 | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 28 | 711.2 | --- | --- | 7.92 | 12.7 | 15.88 | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 30 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 32 | 812.8 | --- | --- | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | --- | --- | 12.7 | ||||||
| 34 | 863.6 | --- | --- | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | --- | --- | 12.7 | ||||||
| 36 | 914.4 | --- | --- | 7.92 | 12.7 | 15.88 | 19.05 | 9.53 | 19.05 | --- | --- | 12.7 | ||||||
| 38 | 965.2 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 40 | 1016 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 42 | 1066.8 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 44 | 1117.6 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 46 | 1168.4 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 48 | 1219.2 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 |
용접관 (밀리미터)에 대한 허용한도
| NPS | *t/D | 허용한도, 명사 상당어로부터의 % | |
| 1/8 ~2.5 | 모두 | +20.0 | -12.5 |
| 3 ~18 | ≤5% | +22.5 | -12.5 |
| 3 ~18 | >5% | +15.0 | -12.5 |
| ≥20" | 모두 | +17.5 | -12.5 |
| ≥20" | ≤5% | +22.5 | -12.5 |
*t : 공칭 벽 두께 ; Ｄ : 질서있는 외부 직경.
