| 원래 장소 | 중국 |
| 브랜드 이름 | Kasugai |
| 인증 | ISO PED AD2000 |
| 모델 번호 | ASTM A312 TP304/L ASME B36.10M WLD SS 파이프 |
| 문서 | 제품 설명서 PDF |

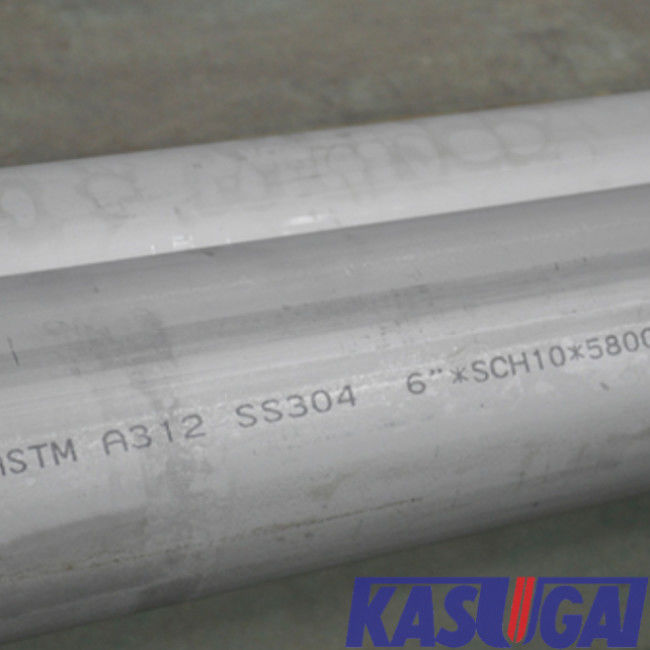

ASTM A312 TP304/L ASME B36.10M은 스테인리스강관을 용접했습니다
상술 : ASME B36.10M은 높거나 저온과 압력을 위해 사용되는 용접되고 이음새가 없는 연강 파이프를 위한 표준 명세서입니다. 이 표준은 스테인레스 강, 니켈, 티타늄 지르코늄, 탄탈, 알루미늄과 구리, 기타 등등과 같은 다른 철을 함유하고 비철 합금으로부터 만들어진 용접되고 이음매 없는 관을 위해 또한 광범위하게 사용됩니다. 모든 재료는 상응하는 ASTM 또는 ASME 상술에 수록될 것입니다.
ASTM A312는 용접된 이음새가 없는, 직선 이음부와 2개의 방향 섹션을 용접하는 더 큰 지름 용접관이 허락되는 때인 심하게 추운 정교한 용접된 스테인리스강관을 커버합니다
제품 정보
| 상품 이름 | ASTM A312 TP304/L ASME B36.10M은 스테인리스강관을 용접했습니다 |
| 크기 범위 | 1/8 내지 48 |
| 표준 | ASTM A312 TP304/L |
| 벽 두께 | ASME B36.10M에 따라 |
| 길이 | 6.096 Ｍ (20′), 12.19 Ｍ (40′), 6 Ｍ와 12 Ｍ가 특화했습니다 |
| 단부 프로세스 | 평범한 단부, 경사진 단부, 나사산이 있는 끝 |
| 검사 & 테스트 | 가시성 시험, 차원 검사, PMI 화학분석, 인장시험, 편평 시험, 휨시험, 회리 전류 검사, 식각 시험, (용접관을 위한) 방사선 사진 검사, 결정간 부식 시험 (촉탁). |
표준과 재료 : ASTM A312 TP304/L
304L은 낮은 탄소 304 오스테나이트계 스테인리스 강입니다, 동등한 강철의 유럽에 있는 다양한 앱에 적합한 우수한 내식성 0.035%를 초과하지 못하는 탄소 함량이 1.4307입니다.
ASTM A312 TP304/L 화학조성 (%)
| 등급 | Ｃ | Si | Mn | Cr | Ni | Mo | Ｓ | Ｐ |
| TP304 | 0,08 | 1,0 | 2.00 | 18.0 - 20.0 18.0 - 20.0 | 8.0 - 11.0 8.0 - 11.0 | - | 0,03 | 0,045 |
| TP304L | 0,035 | 1,0 | 2.00 | 18.0 - 20.0 18.0 - 20.0 | 8.0 - 13.0 8.0 - 13.0 | - | 0,03 | 0,045 |
ASTM A312 역학적 성질
| 등급 | UNS | 인장 강도 민, 크시 [MPa] |
항복 강도 민, 크시 [MPa] |
| TP304 | S30400 | 75 [515] | 30 [205] |
| TP304L | S30403 | 70 [485] | 25 [170] |
ASME / ANSI B36.10M 용접되의 차원과 이음새가 없는 만드는 강관 (밀리미터)
| NPS | Ｄ | Sch5s | Sch10s | Sch10 | Sch20 | Sch30 | Sch40s | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch100 | Sch120 | Sch140 | Sch160 | XXS |
| 1/8 | 10.3 | --- | 1.24 | --- | --- | --- | 1.73 | 1.73 | 1.73 | --- | 2.41 | 2.41 | 2.41 | --- | --- | --- | --- | --- |
| 1/4 | 13.7 | --- | 1.65 | --- | --- | --- | 2.24 | 2.24 | 2.24 | --- | 3.02 | 3.02 | 3.02 | --- | --- | --- | --- | --- |
| 3/8 | 17.1 | --- | 1.65 | --- | --- | --- | 2.31 | 2.31 | 2.31 | --- | 3.2 | 3.2 | 3.2 | --- | --- | --- | --- | --- |
| 1/2 | 21.3 | 1.65 | 2.11 | --- | --- | --- | 2.77 | 2.77 | 2.77 | --- | 3.73 | 3.73 | 3.73 | --- | --- | --- | 4.78 | 7.47 |
| 3/4 | 26.7 | 1.65 | 2.11 | --- | --- | --- | 2.87 | 2.87 | 2.87 | --- | 3.91 | 3.91 | 3.91 | --- | --- | --- | 5.56 | 7.82 |
| 1 | 33.4 | 1.65 | 2.77 | --- | --- | --- | 3.38 | 3.38 | 3.38 | --- | 4.55 | 4.55 | 4.55 | --- | --- | --- | 6.35 | 9.09 |
| 114 | 42.2 | 1.65 | 2.77 | --- | --- | --- | 3.56 | 3.56 | 3.56 | --- | 4.85 | 4.85 | 4.85 | --- | --- | --- | 6.35 | 9.7 |
| 112 | 48.3 | 1.65 | 2.77 | --- | --- | --- | 3.68 | 3.68 | 3.68 | --- | 5.08 | 5.08 | 5.08 | --- | --- | --- | 7.14 | 10.15 |
| 2 | 60.3 | 1.65 | 2.77 | --- | --- | --- | 3.91 | 3.91 | 3.91 | --- | 5.54 | 5.54 | 5.54 | --- | --- | --- | 8.74 | 11.07 |
| 212 | 73 | 2.11 | 3.05 | --- | --- | --- | 5.16 | 5.16 | 5.16 | --- | 7.01 | 7.01 | 7.01 | --- | --- | --- | 9.53 | 14.02 |
| 3 | 88.9 | 2.11 | 3.05 | --- | --- | --- | 5.49 | 5.49 | 5.49 | --- | 7.62 | 7.62 | 7.62 | --- | --- | --- | 11.13 | 15.24 |
| 312 | 101.6 | 2.11 | 3.05 | --- | --- | --- | 5.74 | 5.74 | 5.74 | --- | 8.08 | 8.08 | 8.08 | --- | --- | --- | --- | --- |
| 4 | 114.3 | 2.11 | 3.05 | --- | --- | --- | 6.02 | 6.02 | 6.02 | --- | 8.56 | 8.56 | 8.56 | --- | 11.13 | --- | 13.49 | 17.12 |
| 5 | 141.3 | 2.77 | 3.4 | --- | --- | --- | 6.55 | 6.55 | 6.55 | --- | 9.53 | 9.53 | 9.53 | --- | 12.7 | --- | 15.88 | 19.05 |
| 6 | 168.3 | 2.77 | 3.4 | --- | --- | --- | 7.11 | 7.11 | 7.11 | --- | 10.97 | 10.97 | 10.97 | --- | 14.27 | --- | 18.26 | 21.95 |
| 8 | 219.1 | 2.77 | 3.76 | --- | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 10 | 273.1 | 3.4 | 4.19 | --- | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 25.4 | 28.58 | 25.4 | 25.4 |
| 12 | 323.9 | 3.96 | 4.57 | --- | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | --- | 9.53 | 11.13 | 15.09 | --- | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | --- | 9.53 | 12.7 | 16.66 | --- | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | --- | 9.53 | 14.27 | 19.05 | --- | 12.7 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 20 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | --- | 9.53 | 15.09 | 20.62 | --- | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 22 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | --- | 9.53 | --- | 22.23 | --- | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 26 | 660.4 | --- | --- | 7.92 | 12.7 | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 28 | 711.2 | --- | --- | 7.92 | 12.7 | 15.88 | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 30 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 32 | 812.8 | --- | --- | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | --- | --- | 12.7 | ||||||
| 34 | 863.6 | --- | --- | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | --- | --- | 12.7 | ||||||
| 36 | 914.4 | --- | --- | 7.92 | 12.7 | 15.88 | 19.05 | 9.53 | 19.05 | --- | --- | 12.7 | ||||||
| 38 | 965.2 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 40 | 1016 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 42 | 1066.8 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 44 | 1117.6 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 46 | 1168.4 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 | ||||||
| 48 | 1219.2 | --- | --- | --- | --- | --- | --- | 9.53 | --- | --- | --- | 12.7 |
