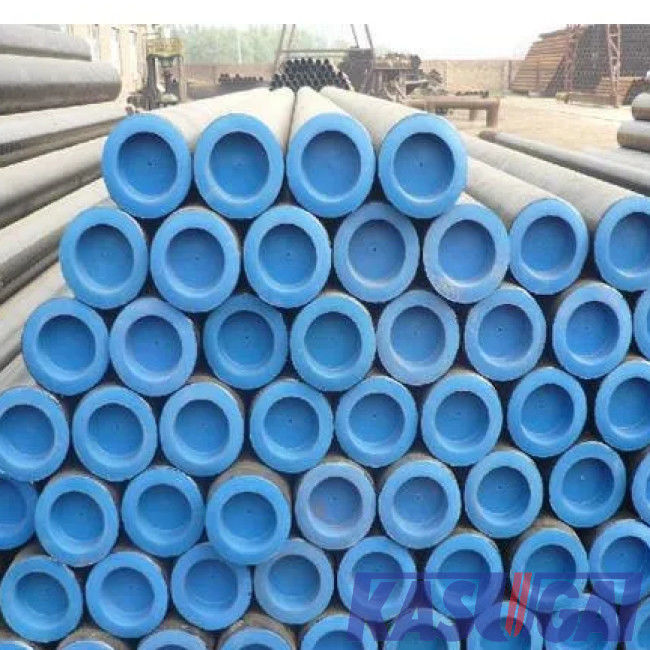

뜨거운 압연 합금 무계목 강관 ASTM A335 P5 Sch30 Sch40S
  • 뜨거운 압연 합금 무계목 강관 ASTM A335 P5 Sch30 Sch40S
뜨거운 압연 합금 무계목 강관 ASTM A335 P5 Sch30 Sch40S

뜨거운 압연 합금 무계목 강관 ASTM A335 P5 Sch30 Sch40S

원래 장소 중국
브랜드 이름 Kasugai
인증 ISO PED AD2000
모델 번호 ASTM A335 P5 ASME B36.10M/B36.19M SMLS
문서 제품 설명서 PDF
제품 상세정보
상품 이름:
ASTM A335 P5 ASME B36.10M/B36.19M 합금강 이음매 없는 파이프
크기 범위:
1/8" ~ 48"
벽 두께:
Sch5S, Sch10S, Sch10, Sch20S, Sch30, Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, S
길이:
SRL, DRL 또는 고객의 요구 사항
단부 프로세스:
평범한 단부, 경사진 단부, 나사산이 있는 끝
표준:
ASTM A335/A335M ASME SA335
강조하다:

뜨거운 압연 합금 무계목 강관

,

Sch30 열간 압연강 파이프

,

Sch40S 합금 무계목 강관

지불과 운송 용어
최소 주문 수량
교섭할 수 있습니다
가격
협상 가능
포장 세부 사항
항해에 적합한 팩왕
배달 시간
30 - 60 근무일
지불 조건
L/C (신용장), 전신환
공급 능력
달 당 500 톤
제품 설명

ASTM A335 P5 ASME B36.10M/B36.19M 합금 강 이음매 없는 관

제품 정보 :

상품 이름 ASTM A335 P5 ASME B36.10M/B36.19M 합금 강 이음매 없는 관
표준 ASTM A335/A335M, ASME SA335
크기 범위 1/8″to 48″
벽 두께 Sch5S, Sch10S,Sch10, Sch20S, Sch30,Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, Sch140,Sch160, XXS
길이 SRL, DRL, 또는 고객의 요구조건으로서
단부 프로세스 평범한 단부, 경사진 단부, 나사산이 있는 끝




ASTM A335 P5 합금 강 (%)의 화학조성

등급 Ｃ Mn Ｐ Ｓ Si Cr Mo
P5 0.15 최대 0.30~0.60 ≤0.025 ≤0.025 0.50 최대 4.0~6.0 0.45~0.65




ASTM A335 P5 합금 강의 역학적 성질

등급

인장 강도

(MPa)

항복 강도

(MPa)

신장

(%)
P5 ≥415 ≥205 ≥30




ASME / ANSI B36.10M의 차원은 용접되었고 이음새가 없는 연강이 내보냅니다

　 Ｄ Sch5s Sch10s Sch10 Sch20 Sch30 Sch40s STD Sch40 Sch60 Sch80s XS Sch80 Sch100 Sch120 Sch140 Sch160 XXS
1/8 10.3 --- 1.24 --- --- --- 1.73 1.73 1.73 --- 2.41 2.41 2.41 --- --- --- --- ---
1/4 13.7 --- 1.65 --- --- --- 2.24 2.24 2.24 --- 3.02 3.02 3.02 --- --- --- --- ---
3/8 17.1 --- 1.65 --- --- --- 2.31 2.31 2.31 --- 3.2 3.2 3.2 --- --- --- --- ---
1/2 21.3 1.65 2.11 --- --- --- 2.77 2.77 2.77 --- 3.73 3.73 3.73 --- --- --- 4.78 7.47
3/4 26.7 1.65 2.11 --- --- --- 2.87 2.87 2.87 --- 3.91 3.91 3.91 --- --- --- 5.56 7.82
1 33.4 1.65 2.77 --- --- --- 3.38 3.38 3.38 --- 4.55 4.55 4.55 --- --- --- 6.35 9.09
114 42.2 1.65 2.77 --- --- --- 3.56 3.56 3.56 --- 4.85 4.85 4.85 --- --- --- 6.35 9.7
112 48.3 1.65 2.77 --- --- --- 3.68 3.68 3.68 --- 5.08 5.08 5.08 --- --- --- 7.14 10.15
2 60.3 1.65 2.77 --- --- --- 3.91 3.91 3.91 --- 5.54 5.54 5.54 --- --- --- 8.74 11.07
212 73 2.11 3.05 --- --- --- 5.16 5.16 5.16 --- 7.01 7.01 7.01 --- --- --- 9.53 14.02
3 88.9 2.11 3.05 --- --- --- 5.49 5.49 5.49 --- 7.62 7.62 7.62 --- --- --- 11.13 15.24
312 101.6 2.11 3.05 --- --- --- 5.74 5.74 5.74 --- 8.08 8.08 8.08 --- --- --- --- ---
4 114.3 2.11 3.05 --- --- --- 6.02 6.02 6.02 --- 8.56 8.56 8.56 --- 11.13 --- 13.49 17.12
5 141.3 2.77 3.4 --- --- --- 6.55 6.55 6.55 --- 9.53 9.53 9.53 --- 12.7 --- 15.88 19.05
6 168.3 2.77 3.4 --- --- --- 7.11 7.11 7.11 --- 10.97 10.97 10.97 --- 14.27 --- 18.26 21.95
8 219.1 2.77 3.76 --- 6.35 7.04 8.18 8.18 8.18 10.31 12.7 12.7 12.7 15.09 18.26 20.62 23.01 22.23
10 273.1 3.4 4.19 --- 6.35 7.8 9.27 9.27 9.27 12.7 12.7 12.7 15.09 18.26 25.4 28.58 25.4 25.4
12 323.9 3.96 4.57 --- 6.35 8.38 9.53 9.53 10.31 14.27 12.7 12.7 17.48 21.44 25.4 28.58 33.32 25.4
14 355.6 3.96 4.78 6.35 7.92 9.53 --- 9.53 11.13 15.09 --- 12.7 19.05 23.83 27.79 31.75 35.71
16 406.4 4.19 4.78 6.35 7.92 9.53 --- 9.53 12.7 16.66 --- 12.7 21.44 26.19 30.96 36.53 40.49
18 457.2 4.19 4.78 6.35 7.92 11.13 --- 9.53 14.27 19.05 --- 12.7 23.83 29.36 34.93 39.67 45.24
20 508 4.78 5.54 6.35 9.53 12.7 --- 9.53 15.09 20.62 --- 12.7 26.19 32.54 38.1 44.45 50.01
22 558.8 4.78 5.54 6.35 9.53 12.7 --- 9.53 --- 22.23 --- 12.7 28.58 34.93 41.28 47.63 53.98
26 660.4 --- --- 7.92 12.7 --- --- 9.53 --- --- --- 12.7
28 711.2 --- --- 7.92 12.7 15.88 --- 9.53 --- --- --- 12.7
30 762 6.35 7.92 7.92 12.7 15.88 --- 9.53 --- --- --- 12.7
32 812.8 --- --- 7.92 12.7 15.88 17.48 9.53 17.48 --- --- 12.7
34 863.6 --- --- 7.92 12.7 15.88 17.48 9.53 17.48 --- --- 12.7
36 914.4 --- --- 7.92 12.7 15.88 19.05 9.53 19.05 --- --- 12.7
38 965.2 --- --- --- --- --- --- 9.53 --- --- --- 12.7
40 1016 --- --- --- --- --- --- 9.53 --- --- --- 12.7
42 1066.8 --- --- --- --- --- --- 9.53 --- --- --- 12.7
44 1117.6 --- --- --- --- --- --- 9.53 --- --- --- 12.7
46 1168.4 --- --- --- --- --- --- 9.53 --- --- --- 12.7
48 1219.2 --- --- --- --- --- --- 9.53 --- --- --- 12.7



ASME / ANSI B36.19M의 차원은 용접되었고 이음새가 없는 연강이 내보냅니다



NPS

　

(인치)

Dia 밖에.

(밀리미터)

 공칭 벽 두께 (밀리미터)
Sch5S(1) Sch10S(1) Sch40S Sch80S
1/8 10.3 --- 1.24 1.73 2.41
1/4 13.7 --- 1.65 2.24 3.02
3/8 17.1 --- 1.65 2.31 3.20
1/2 21.3 1.65 2.11 2.77 3.73
3/4 26.7 1.65 2.11 2.87 3.91
1 33.4 1.65 2.77 3.38 4.55
114 42.2 1.65 2.77 3.56 4.85
112 48.3 1.65 2.77 3.68 5.08
2 60.3 1.65 2.77 3.91 5.54
212 73 2.11 3.05 5.16 7.01
3 88.9 2.11 3.05 5.49 7.62
312 101.6 2.11 3.05 5.74 8.08
4 114.3 2.11 3.05 6.02 8.56
5 141.3 2.77 3.4 6.55 9.53
6 168.3 2.77 3.4 7.11 10.97
8 219.1 2.77 3.76 8.18 12.70
10 273.1 3.40 4.19 9.27 12.70(2)
12 323.9 3.96 4.57 9.53(2) 12.70(2)
14 355.6 3.96 4.78(2) ... ...
16 406.4 4.19 4.78(2) ... ...
18 457.2 4.19 4.78(2) ... ...
20 508 4.78 5.54(2) ... ...
22 558.8 4.78 5.54(2) ... ...
24 660.4 5.54 6.35 ... ...
30 762 6.35 7.92 ... ...


기록 :

(1) 일정 5S와 10대 벽 두께는 ANSI / ASME B1.20.1에 따라 빠져 나아가는 것을 허용하지 않습니다

(2) 이러한 차원은 ANSI / ASME B36.1M에 따르지 않습니다



사이즈, 차원과 이음매 없는 관 (밀리미터)에 대한 허용한도

NPS *t/D 허용한도, 명사 상당어로부터의 %
1/8 ~2.5 모두 +20.0 -12.5
3 ~18 ≤5% +22.5 -12.5
3 ~18 >5% +15.0 -12.5
≥20" >5% +15.0 -12.5

*t : 공칭 벽 두께 ; Ｄ : 질서있는 외부 직경.
