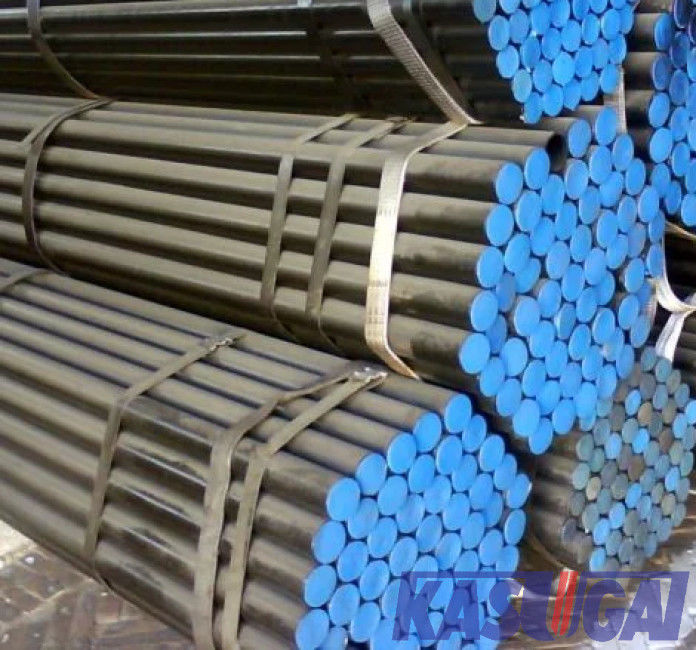

ASME B36.10M 합금강관 이음새가 없는 Sch20S 벽 두께 배관

원래 장소	중국
브랜드 이름	Kasugai
인증	ISO PED AD2000
모델 번호	ASTM A335 P9 ASME B36.10M/B36.19M SMLS
문서	제품 설명서 PDF

제품 상세정보

상품 이름:

ASTM A335 P9 ASME B36.10M/B36.19M 합금강 이음매 없는 파이프

크기 범위:

1/8" ~ 48"

벽 두께:

Sch5S, Sch10S, Sch10, Sch20S, Sch30, Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, S

길이:

SRL, DRL, 단면 길이 (≤6m)

단부 프로세스:

평범한 단부, 경사진 단부, 나사산이 있는 끝

차원:

ASME/ANSI B36.10M ASME/ANSI 36.19M

강조하다:

Sch20S 합금강관

ASME B36.10M 파이프 Sch20S

ASME 합금강관

지불과 운송 용어

최소 주문 수량

교섭할 수 있습니다

가격

협상 가능

포장 세부 사항

항해에 적합한 팩왕

배달 시간

30 - 60 근무일

지불 조건

L/C (신용장), 전신환

공급 능력

달 당 500 톤

제품 설명

고압 & 고온 서비스를 위한 ASTM A335 P9 ASME B36.10M/B36.19M 합금 강 이음매 없는 관

제품 정보 :

상품 이름	고압 & 고온 서비스를 위한 ASTM A335 P9 ASME B36.10M/B36.19M 합금 강 이음매 없는 관
표준	ASTM A335/A335M, ASME SA335
크기 범위	1/8″to 48″
벽 두께	Sch5S, Sch10S,Sch10, Sch20S, Sch30,Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, Sch140,Sch160, XXS
길이	SRL, DRL, 또는 고객의 요구조건으로서
단부 프로세스	평범한 단부, 경사진 단부, 나사산이 있는 끝

ASTM A335 P1, P2, P5, P9, P11, P12, P22, P91 합금 강 (%)의 화학조성

등급	Ｃ	Mn	Ｐ	Ｓ	Si	Cr	Mo	Ｖ	엔	다른 사람
P9	0.15 최대	0.30-0.60	≤0.025	≤0.025	0.25-1.0	8.0-10.0	0.90-1.10

ASTM A335 P1, P2, P5, P9 합금 강의 역학적 성질

등급

인장 강도

(MPa)

항복 강도

(MPa)

신장

(%)

≥415

≥205

≥30

ASME / ANSI B36.10M의 차원은 용접되었고 이음새가 없는 연강이 내보냅니다

	Ｄ	Sch5s	Sch10s	Sch10	Sch20	Sch30	Sch40s	STD	Sch40	Sch60	Sch80s	XS	Sch80	Sch100	Sch120	Sch140	Sch160	XXS
1/8	10.3	---	1.24	---	---	---	1.73	1.73	1.73	---	2.41	2.41	2.41	---	---	---	---	---
1/4	13.7	---	1.65	---	---	---	2.24	2.24	2.24	---	3.02	3.02	3.02	---	---	---	---	---
3/8	17.1	---	1.65	---	---	---	2.31	2.31	2.31	---	3.2	3.2	3.2	---	---	---	---	---
1/2	21.3	1.65	2.11	---	---	---	2.77	2.77	2.77	---	3.73	3.73	3.73	---	---	---	4.78	7.47
3/4	26.7	1.65	2.11	---	---	---	2.87	2.87	2.87	---	3.91	3.91	3.91	---	---	---	5.56	7.82
1	33.4	1.65	2.77	---	---	---	3.38	3.38	3.38	---	4.55	4.55	4.55	---	---	---	6.35	9.09
114	42.2	1.65	2.77	---	---	---	3.56	3.56	3.56	---	4.85	4.85	4.85	---	---	---	6.35	9.7
112	48.3	1.65	2.77	---	---	---	3.68	3.68	3.68	---	5.08	5.08	5.08	---	---	---	7.14	10.15
2	60.3	1.65	2.77	---	---	---	3.91	3.91	3.91	---	5.54	5.54	5.54	---	---	---	8.74	11.07
212	73	2.11	3.05	---	---	---	5.16	5.16	5.16	---	7.01	7.01	7.01	---	---	---	9.53	14.02
3	88.9	2.11	3.05	---	---	---	5.49	5.49	5.49	---	7.62	7.62	7.62	---	---	---	11.13	15.24
312	101.6	2.11	3.05	---	---	---	5.74	5.74	5.74	---	8.08	8.08	8.08	---	---	---	---	---
4	114.3	2.11	3.05	---	---	---	6.02	6.02	6.02	---	8.56	8.56	8.56	---	11.13	---	13.49	17.12
5	141.3	2.77	3.4	---	---	---	6.55	6.55	6.55	---	9.53	9.53	9.53	---	12.7	---	15.88	19.05
6	168.3	2.77	3.4	---	---	---	7.11	7.11	7.11	---	10.97	10.97	10.97	---	14.27	---	18.26	21.95
8	219.1	2.77	3.76	---	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7	12.7	15.09	18.26	20.62	23.01	22.23
10	273.1	3.4	4.19	---	6.35	7.8	9.27	9.27	9.27	12.7	12.7	12.7	15.09	18.26	25.4	28.58	25.4	25.4
12	323.9	3.96	4.57	---	6.35	8.38	9.53	9.53	10.31	14.27	12.7	12.7	17.48	21.44	25.4	28.58	33.32	25.4
14	355.6	3.96	4.78	6.35	7.92	9.53	---	9.53	11.13	15.09	---	12.7	19.05	23.83	27.79	31.75	35.71
16	406.4	4.19	4.78	6.35	7.92	9.53	---	9.53	12.7	16.66	---	12.7	21.44	26.19	30.96	36.53	40.49
18	457.2	4.19	4.78	6.35	7.92	11.13	---	9.53	14.27	19.05	---	12.7	23.83	29.36	34.93	39.67	45.24
20	508	4.78	5.54	6.35	9.53	12.7	---	9.53	15.09	20.62	---	12.7	26.19	32.54	38.1	44.45	50.01
22	558.8	4.78	5.54	6.35	9.53	12.7	---	9.53	---	22.23	---	12.7	28.58	34.93	41.28	47.63	53.98
26	660.4	---	---	7.92	12.7	---	---	9.53	---	---	---	12.7
28	711.2	---	---	7.92	12.7	15.88	---	9.53	---	---	---	12.7
30	762	6.35	7.92	7.92	12.7	15.88	---	9.53	---	---	---	12.7
32	812.8	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
34	863.6	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
36	914.4	---	---	7.92	12.7	15.88	19.05	9.53	19.05	---	---	12.7
38	965.2	---	---	---	---	---	---	9.53	---	---	---	12.7
40	1016	---	---	---	---	---	---	9.53	---	---	---	12.7
42	1066.8	---	---	---	---	---	---	9.53	---	---	---	12.7
44	1117.6	---	---	---	---	---	---	9.53	---	---	---	12.7
46	1168.4	---	---	---	---	---	---	9.53	---	---	---	12.7
48	1219.2	---	---	---	---	---	---	9.53	---	---	---	12.7

사이즈, 차원과 이음매 없는 관 (밀리미터)에 대한 허용한도

NPS	*t/D	허용한도, 명사 상당어로부터의 %
1/8 ~2.5	모두	+20.0	-12.5
3 ~18	≤5%	+22.5	-12.5
3 ~18	>5%	+15.0	-12.5
≥20"	>5%	+15.0	-12.5

*t : 공칭 벽 두께 ; Ｄ : 질서있는 외부 직경.

ASME / ANSI B36.19M의 차원은 용접되었고 이음새가 없는 연강이 내보냅니다

NPS 　 (인치)	Dia 밖에. (밀리미터)	공칭 벽 두께 (밀리미터)
NPS 　 (인치)	Dia 밖에. (밀리미터)	Sch5S(1)	Sch10S(1)	Sch40S	Sch80S
1/8	10.3	---	1.24	1.73	2.41
1/4	13.7	---	1.65	2.24	3.02
3/8	17.1	---	1.65	2.31	3.20
1/2	21.3	1.65	2.11	2.77	3.73
3/4	26.7	1.65	2.11	2.87	3.91
1	33.4	1.65	2.77	3.38	4.55
114	42.2	1.65	2.77	3.56	4.85
112	48.3	1.65	2.77	3.68	5.08
2	60.3	1.65	2.77	3.91	5.54
212	73	2.11	3.05	5.16	7.01
3	88.9	2.11	3.05	5.49	7.62
312	101.6	2.11	3.05	5.74	8.08
4	114.3	2.11	3.05	6.02	8.56
5	141.3	2.77	3.4	6.55	9.53
6	168.3	2.77	3.4	7.11	10.97
8	219.1	2.77	3.76	8.18	12.70
10	273.1	3.40	4.19	9.27	12.70(2)
12	323.9	3.96	4.57	9.53(2)	12.70(2)
14	355.6	3.96	4.78(2)	...	...
16	406.4	4.19	4.78(2)	...	...
18	457.2	4.19	4.78(2)	...	...
20	508	4.78	5.54(2)	...	...
22	558.8	4.78	5.54(2)	...	...
24	660.4	5.54	6.35	...	...
30	762	6.35	7.92	...	...

기록 :

(1) 일정 5S와 10대 벽 두께는 ANSI / ASME B1.20.1에 따라 빠져 나아가는 것을 허용하지 않습니다

(2) 이러한 차원은 ANSI / ASME B36.1M에 따르지 않습니다
