제품 상세정보
원래 장소: 중국
브랜드 이름: Kasugai
인증: ASTM/ASME
모델 번호: A249/A269/A312
문서: 제품 설명서 PDF
지불과 운송 용어
최소 주문 수량: 5 톤
가격: To be negotiated
포장 세부 사항: 항해에 적합한 패키징
배달 시간: 30-50 일
지불 조건: t/t, l/c, d/p
공급 능력: 톤당 500 톤

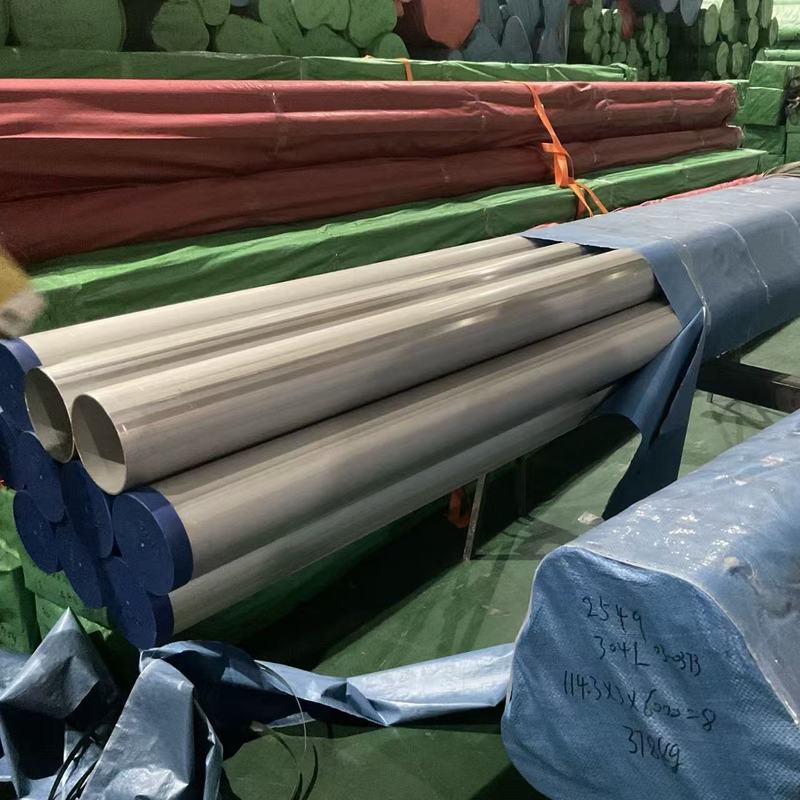

ASTM A249, ASTM A269, and ASTM A312 are among the most critical standards for welded austenitic stainless steel tubing and pipe in industrial applications. These specifications ensure that materials meet rigorous requirements for quality, dimensions, and performance in various service conditions, from general corrosion resistance to high-temperature environments.
Tubing conforming to ASTM A249, A269, and A312 standards shares several key characteristics. They are manufactured from austenitic stainless steel grades like 304/304L, 316/316L, 321, 347, and duplex steels. These grades are chosen for their excellent corrosion resistance, high strength and durability, and good formability and weldability.
A significant feature of these tubes, especially under ASTM A269, is the availability of BA (Bright Annealed) finish. BA tubes undergo a process where they are cold worked and then annealed in a controlled atmosphere (like pure argon) to achieve a very smooth, clean, and bright surface without the need for mechanical polishing. This results in superior surface cleanliness and dimensional accuracy (e.g., ±0.05mm).
These tubes can be supplied in both welded and seamless forms, though A249 specifically covers welded tubes for heat exchangers, boilers, superheaters, and condensers. They undergo stringent non-destructive testing (NDT), such as eddy current tests, hydrostatic tests, and flaring tests, to ensure integrity
Chemical Composition (%)
| Grade | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–10.5 | – |
| 304L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–12.0 | – |
| 316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| 316L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
Mechanical Properties:
| Grade | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HRB, max) |
|---|---|---|---|---|
| 304 | 515 (min) | 205 (min) | 40 (min) | 92 |
| 304L | 485 (min) | 170 (min) | 40 (min) | 92 |
| 316 | 515 (min) | 205 (min) | 40 (min) | 95 |
| 316L | 485 (min) | 170 (min) | 40 (min) | 95 |
Specification
| Standard | Size Range (OD) | Wall Thickness Range | Typical Applications |
|---|---|---|---|
| ASTM A249 | 1/8” – 12” (3.2–300mm) | 0.015” – 0.312” (0.4–8mm) | Boilers, condensers, heat exchangers |
| ASTM A269 | 1/8” – 12” (3.2–300mm) | 0.020” – 0.500” (0.5–12.7mm) | Instrumentation, general service piping |
| ASTM A312 | 1/8” – 48” (3.2–1200mm) | 0.020” – 2” (0.5–50mm) | Chemical, petrochemical, power plants |
Q1: What is the main difference between ASTM A249 and ASTM A269?
A1: ASTM A249 specifically covers welded austenitic stainless steel tubes intended for use in boilers, superheaters, heat exchangers, and condensers. ASTM A269 covers both seamless and welded austenitic stainless steel tubes for general corrosion-resisting and temperature service. A269 is also the common standard for BA (Bright Annealed) tubes.
Q2: Can ASTM A312 tubes be used for high-pressure applications?
A2: Yes, ASTM A312 tubes, being designed for general corrosion-resisting and high-temperature service, can be used in various pressure applications. However, for specific high-pressure roles like boiler tubes, standards like A209 (for seamless carbon-molybdenum alloy-steel tubes) or A249 might be more directly applicable, and the final selection should always adhere to the applicable pressure vessel code.
Q3: What does "BA" mean in the context of stainless steel tubing?
A3: BA stands for Bright Annealing. It's a process where the tube is annealed in a controlled atmosphere (e.g., argon) to prevent oxidation, resulting in a smooth, bright, and clean surface that is ideal for high-purity applications without requiring further mechanical polishing. ASTM A269 is a common standard specifying BA tubes.
Q4: What are the common material grades under these specifications?
A5: The most common grades across A249, A269, and A312 are 304/304L and 316/316L. Other grades include 321/321H, 347/347H, 310S, and duplex steels, chosen based on specific corrosion and temperature requirements.
Kasugai Group supply pipe fittings,steel pipes and flanges products more than 100 years,If you want to know more about our piping products,please email us:zhangying@kasugai-group.co.jp
